Designed for:
- Hydrogeological, industrial water well drilling
- Drilling for water depression wells, ventilation bore-holes, bumping wells, energy wells, freezing wells
- Geological exploration

Applied drilling technologies:
- Rotary drilling with direct water circulation
- Rotary with reverce water circulation drilling (air lift technology)

Technical specifications:
1-st Rotary head type:
- hydraulic with the right side of the well's axis diversion possibility by the hydraulic cylinder operated from the driller's control panel
- hydraulic with rotation in forward direction from the drilling axis up to the 90 degrees angle, which makes safe and rapid hoisting possible during the rig's assembled/disassembled process
2-nd Rotary head type:
- hydraulic with a side diversion by hidraulic cilinder;
- all of unit's operating elements are hydraulically driven. Because of that additional technological equipments supplying without significant construction design changes is possible. Depending on the rig purpose application could be supplying by drilling rotary heads (technical characteristics could be diffrent from the presented); different hoisting equipments (pipe's rotation/clamp equipments depending from the using diameter). Operational labour intencity decreases in comparison with the mechanical transmission driven drilling rigs;
- hydraulic system operation provides the exact drilling tuning and operational control;
- the driller's workplace is organized on a hinged platform, fixed on the rear side ot the platform rig;
- for the DTH drilling implementation in hard geological-technical conditions rigs could be supplying of lubricator for the immersible DTH machinery;
- wide range of the accessories avalible on request provides the basic operations with the different types of the drilling toos and additional operations mechanisation.

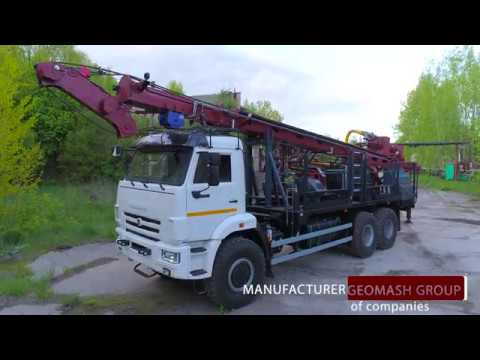

Nomenclature URB-210
Applied chassis
URAL, KAMAZ, semitrailers
Rig drive
Main vehicle engine through PTO to Transfer box
Nominal power take off capacity, kW
160
Nominal hydraulic system pressure Mpa (kgf/sm2) no less
20 (204)
MAST
Vertical, framework designed
Height, m
12
Payload, tf (kN)
20 (196)
CROWN BLOCK
One string; 2-4 lines stringup
1-st Rotary head version:
For rotary drilling with reverce water circulation drilling (air lift technology) method
Rotary head frequency (1-st range), r/min
0-60
Rotary head torque (1-st range), kgsm
1500
Rotary head frequency (2-nd range), r/min
0-130
Rotary head torque (2-nd range), kgsm
700
Rotary head payload, kgf
20 000
Diameter of the Rotary head straight through spindel hole, mm, no less
130
Rotary head equipment set for rotary drilling with reverse water circulation drilling (air lift technology) method with use of separate compressor

Upper swivel with hole 130 mm.
Down air swivel with inner tool-joint thread 3-171 for the special drilling pipes  and air pressure line connection

2-nd Rotary head version:
For rotary drilling with wash/airflush
Rotary head frequency (1-st range), r/min
0-60
Rotary head torque (1-st range), kgsm
1500
Rotary head frequency (2-nd range), r/min
0-400
Rotary head torque (2-nd range), kgsm
400
Rotary head payload, kgf
20 000
Delivery mechanism
Hydraulic cylinder with polyspast-rope delivery mechanism
Max. well bottom towing capacity, tf (kN)
6,5 (64,46)
Max. lifting capacity, tf (kN)
20 (19,5)
Rotary head stroke, m
7,1
Max. drilling rods length, m
6,0
Drilling winch
Hydraulic drive, reversed
Winch towing capacity, tf
3,0/5,0/10,0*
Nominal drilling depth, m:

- with reverse water circulation (air lift)
150
- with direct wash
800
Drilling diameter, mm:

- with reverse water circulation (air lift)
up to 1000
- with direct wash initial/final
up to 530 / up to  152

* - by special request

Including components:
- drilling pumps NB-50 / NB-80
